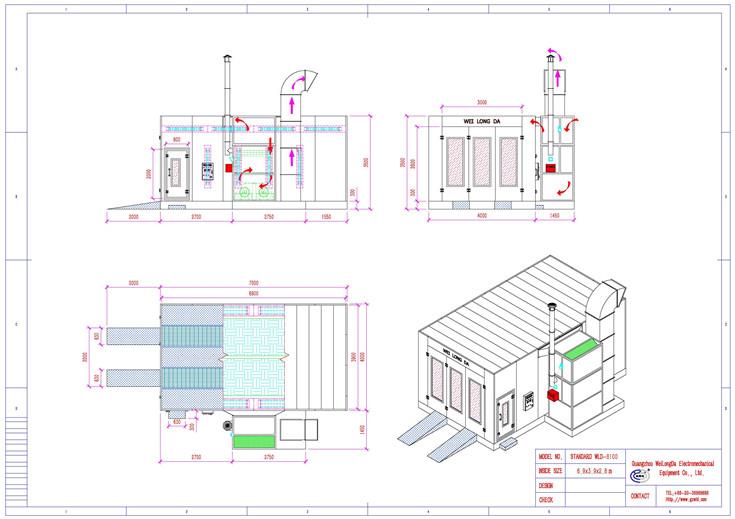

Bwth Chwistrellu Auto Safonol

Maint Mewnol: (mm)

6900x3900x2800

Cyfanswm pŵer: (kw)

10

Cabin       System

Walfwrdd

Fire-retardant composite molding Sandwich style EPS (epispastics polystyrene) (Rock wool and PU are optional )50mm thickness, EPS foam Density is 14kg/m³ ; The colorful steel skin boards have been HDG(hot dip galvanizing),service life can reach 20 years without rusting. It keeps high insulation performance. Four colors for your choice, including blue, red, orange and white. High quality galvanized steel roof panel.

Islawr

300mm high powder coated galvanized steel sheet and square steel pipe construction.3 row of checked plate and 2 row of grids ,anti-rust and strong. The bearing capacity of driving grids up to 1000 kg per wheel; Basement frame is assembly formed by antirust steel square tube, the overall performance is good and strong. Two powder coated ramps.

Drws

3 pieces of luxury front doors, made of 0.8mm galvanized powder coating sheet(both sides), beautiful and strong. Size: 3000(w)2750(h).The view window is big tempered glass with aluminum frame,very graceful. 1 darn o ddrws brys gyda ffenestr ffrâm alwminiwm.

System Cylchrediad Awyr

Fan cymeriant

2x4kw intake fan. BELIMO 20N electric damper. Siemens technology production, large air volume and low noise. Air flow: 24,000m3/h. The wire core of our fans is full copper so our fans are very durable.

Pibell Awyr

Roedd dalen ddur galfanedig wedi'i gwneud o 4 darn o bibell syth7507501000, ac 1 darn o benelin.

Hidlo

Multilayer filtering structure. The primary filter can capture granules larger than10μm. Ceiling filter capture granules bigger than 5μm. The floor filter can capture paint and dust emission when painting. The air cleanliness in the working environment can reach 98 percent .

System Gwresogi

Llosgwr

Llosgwr disel gwreiddiol yr Eidal RIELLO G20, 200,000Kcal/h. Yr amser gwresogi 5-7 munud (20-60 gradd) Uchafswm. tymheredd ar 80 gradd. Y defnydd o danwydd yw 4-5kg / cerbyd.

Cyfnewidydd Gwres

Dwy haen. Wedi'i wneud o ddur di-staen. Gall y gyfradd cyfnewid gwres gyrraedd 85 y cant .Two haen i wneud ein system wresogi yn fwy diogel a chael cyfradd cyfnewid gwres uwch. Yn fwy na hynny, rydym yn gwneud dwy adain i wneud i'r tymheredd godi'n gyflymach ac arbed ynni.

Air make up   cabinet

Mae'r plât arwyneb yn blât galfanedig wedi'i orchuddio â phowdr, gwrth-rust, cryf a hardd; Mae'r ffrâm yn cael ei drin gan dip poeth, gwrthrust a chryf, yn fwy gwydn na thriniaeth wyneb arferol, yn fwy prydferth, nodau heb unrhyw fan difrod, anhyblygedd.

Cefnogaeth tanc olew

Tanc wedi'i wneud yn ofalus o ddur o ansawdd uchel, y driniaeth gorchuddio powdr, hardd a gwydn.

Pibell mygdarth

Fume pipe made of galvanized pipe, diameter of 190mm, 4 pieces of 1000mm long straight pipe, two 90 degree elbows.

LED         Lighting   System

Tiwb ysgafn

Ceiling light has 24 pieces of 16w LED lamps. Side light has 16 pieces of 16kw LED lamps. 900 Lux. LED lamps are more bright and durable. The grade of lighting box's dustproof and waterproof reach IP54 grade.

Blwch golau

Plât galfanedig wedi'i weldio, triniaeth gorchuddio powdr, disgleirdeb wyneb, unffurfiaeth lliw.

Filtering   System

Hidlydd cyn-

Grade G2 plate type fiber glass filter; Dual filtering structure. The Pre-filter can capture granules larger than 10μm.

Hidlydd nenfwd

EU5 grade high efficient filter; Ceiling filter capture granules bigger than 5μm.The air cleanliness in the working environment can reaches 98 percent .

Hidlydd llawr

Fiber gwydr amlhaenog. Gall y glendid aer yn yr amgylchedd gwaith gyrraedd 98 y cant.

Ceiling filter           support

Wedi'i wneud o ffrâm ddur tiwb, trwch o 1.2mm, cotio powdr epocsi, antirust a chryf, anhyblyg, hardd a gwydn, gellir ei ddadosod dro ar ôl tro, nid yw'n hawdd ei niweidio, yn hawdd i'w ailosod cotwm hidlo.

Pollution Control       System

Hidlydd gwydr ffibr aml-haen i hidlo allyriadau paent a llwch.

Control     system

Panel Rheoli

System reoli microgyfrifiadur

Swyddogaeth

Painting, constant temperature painting , drying, lighting, painting time and drying time setting ;emergency stop switch, failure indication etc,especially with over-temperature and over-pressure alarm device. The electricity will be cut off once alarm devices alert. It makes our booth very safe.
